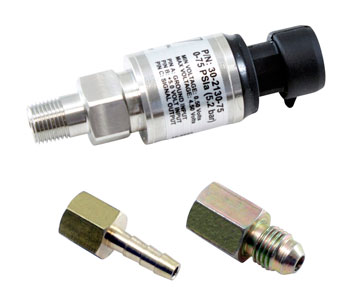

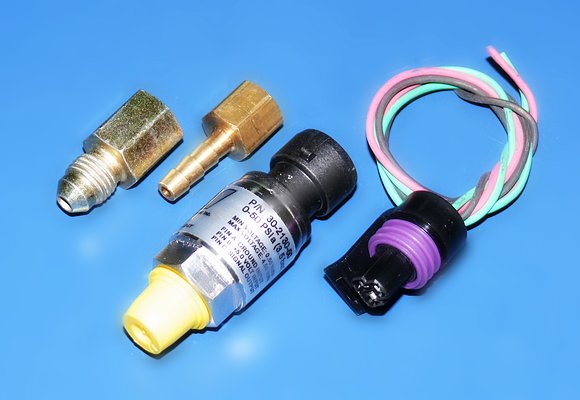

5 BAR / 75 PSIa MAP Stainless Steel Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 5 BAR / 75 PSIa Stainless Steel Sensor, Connector, Pins, 1/8" NPT to -4 Adapter & 1/8" NPT to 3/16" Barb Adapter.


Sensor Performance Specifications:

Accuracy: +/- 0.5% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity

Operating Temp: -40C to 105C / -40F to 221F

Burst Pressure: 750PSI

Response Time: < 1mS

Wetted Materials: 304L & 316L Stainless Steel

Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes

Weight: <85g

Supply Current: <6mA at 5 Vdc

Output: .5 to 4.5Vdc Linear

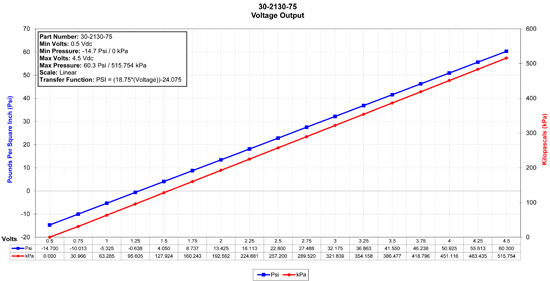

Transfer Function: PSI = (18.75*(Voltage))-24.075

Elec. Termination: Integral weatherproof connector, includes mating connector & pins(Supply Voltage 5Vdc +/- .5, Ground, Output)
